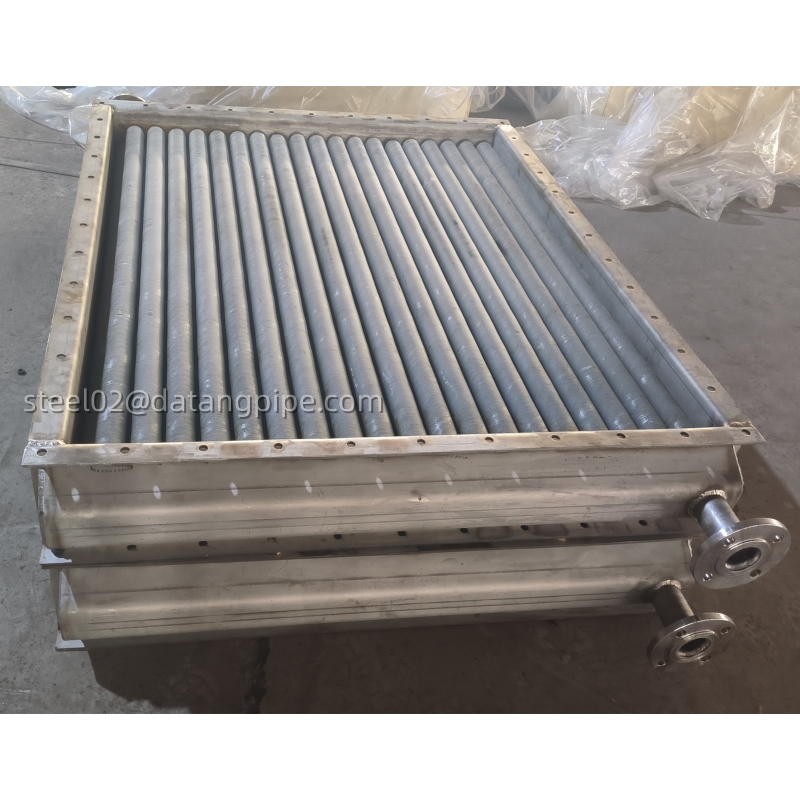

Steam / Hot Oil / Thermal Fluid Air Heater | Custom Finned Tube Air Heating Solutions
Steam, hot oil and thermal fluid air heaters are widely used in industrial heating systems where controlled air temperature, stable operation and efficient heat transfer are required.
As the core heat transfer component of these air heaters, finned tubes play an important role in improving heating performance. Compared with traditional bare tube heating coils, finned tubes provide a much larger heat transfer surface area, allowing more efficient heat exchange between the heating medium and the air.
Based on different operating conditions, we provide customized finned tube solutions and technical support for air heater manufacturers and industrial users. Our engineering team can assist with finned tube selection, thermal calculation and design recommendations according to heating capacity, air flow, temperature, pressure and application requirements.
What Is a Steam / Hot Oil / Thermal Fluid Air Heater?
A steam, hot oil or thermal fluid air heater is a type of heat exchanger equipment designed to transfer heat from a heating medium to air.
During operation, the heating medium flows inside the tubes, while air passes across the external fin surface. The heat is transferred through the tube wall and extended fins, increasing the temperature of the air to meet industrial process requirements.
According to the heating medium used, industrial air heaters are mainly divided into:
- Steam air heaters
- Hot oil air heaters
- Thermal fluid air heaters
- Hot water air heaters
Each type has different advantages depending on temperature requirements, energy sources and operating conditions.
How Does a Finned Tube Air Heater Work?
The working principle of a finned tube air heater is based on indirect heat transfer.
The heating medium, such as steam, hot oil or thermal fluid, enters the inside of the finned tubes. Heat energy is transferred from the internal fluid to the tube wall and then released through the external fins to the surrounding air.
The fins increase the external heat transfer area, which is especially important in air heating applications because the heat transfer coefficient of air is relatively low compared with liquids.
A properly designed finned tube air heater can achieve the required heating capacity while maintaining a compact structure and reliable operation.
Why Use Finned Tubes for Air Heater Manufacturing?
Finned tubes are widely used in industrial air heaters because they provide several important advantages.
Increased Heat Transfer Surface Area
The biggest advantage of finned tubes is the extended surface design.
By adding fins around the base tube, the heat transfer area is significantly increased. This allows more heat to be transferred from the heating medium to the air within the same installation space.
Compact Equipment Design
Compared with bare tube heat exchangers, finned tube air heaters can achieve higher heating capacity with a smaller footprint.
This makes them suitable for applications where installation space is limited or where higher heating performance is required.
Flexible Material Selection
Different operating environments require different tube and fin materials.
Common materials include:
- Carbon steel
- Stainless steel
- Copper
- Aluminum
- Alloy materials
Material selection depends on factors such as:
- Operating temperature
- Working pressure
- Corrosion conditions
- Heating medium characteristics
Steam Air Heater Applications
Steam air heaters are commonly used in industrial systems where steam is available as the heating source.
Typical applications include:
- Industrial drying equipment
- Air handling systems
- Food processing equipment
- Textile production lines
- Chemical processing systems
- Factory ventilation heating
Steam heating provides advantages such as fast heat transfer, stable temperature control and easy integration with existing steam networks.
Hot Oil / Thermal Fluid Air Heater Applications
Hot oil and thermal fluid air heaters are commonly selected for applications requiring higher temperature operation or precise temperature control.
Compared with steam systems, thermal fluid systems can provide high-temperature heating under relatively low operating pressure, making them suitable for many industrial processes.
Typical applications include:
- Wood drying kilns
- Industrial ovens
- Paint curing systems
- Chemical processing equipment
- Thermal treatment lines
- Industrial drying systems
Customized Finned Tube Air Heater Design
Different industries have different heating requirements. A suitable air heater design needs to consider multiple operating parameters.
We provide customized solutions based on actual working conditions, including:
Operating Parameters
- Required heating capacity
- Air flow rate
- Air inlet temperature
- Air outlet temperature
- Heating medium type
- Working temperature
- Working pressure
- Installation requirements
Finned Tube Selection
According to the application requirements, different finned tube designs can be considered, including:
- Spiral fin tubes
- G type embedded fin tubes
- L footed fin tubes
- Extruded aluminum fin tubes
- Serrated fin tubes
- Laser welded fin tubes
The selection of fin type, tube material and dimensions directly affects heat transfer performance and service life.
Finned Tube Manufacturing Capability for Air Heater Projects
As a professional finned tube manufacturer, we supply heat transfer components used for manufacturing various industrial air heaters.
Our support includes:
- Finned tube selection assistance
- Technical parameter confirmation
- Heat transfer calculation support
- Customized tube dimensions
- Material recommendation
- Production according to customer drawings
- Quality inspection support
By understanding the final application and operating conditions, we help customers choose suitable finned tube solutions for their air heater projects.
Finned Tube Air Heater Compared with Traditional Heating Solutions
| Heating Type | Heat Transfer Performance | Typical Application |
|---|---|---|
| Bare Tube Heater | Limited heat transfer area | Basic heating systems |
| Finned Tube Air Heater | Increased heat transfer surface | Industrial air heating applications |
| Electric Heater | Direct electrical heating | Small and medium heating systems |
| Thermal Fluid Heater | Suitable for high-temperature processes | Industrial thermal systems |
Industries Using Steam / Hot Oil / Thermal Fluid Air Heaters
Finned tube air heaters are widely used in industries including:
- Energy
- Chemical processing
- Food processing
- Wood drying
- Textile manufacturing
- Automotive coating
- Industrial drying
- HVAC systems
FAQ About Finned Tube Air Heaters
What is a finned tube air heater?
A finned tube air heater is a heat exchanger that uses finned tubes to transfer heat from steam, hot oil or thermal fluid to air. The fins increase the heat transfer surface and improve heating efficiency.
What is the difference between a steam air heater and a hot oil air heater?
A steam air heater uses steam as the heating medium, while a hot oil air heater uses thermal oil or thermal fluid circulation. Hot oil systems are often preferred for higher temperature applications.
How do you select the right finned tube for an air heater?
The selection depends on several factors, including heating capacity, air flow rate, temperature, pressure, corrosion conditions and installation requirements.
Can you provide customized air heater design support?
Yes. We can provide finned tube selection, technical recommendations and customized solutions according to customers’ actual operating conditions.
Conclusion
Steam, hot oil and thermal fluid air heaters require proper heat transfer design to achieve stable and efficient operation.
By selecting suitable finned tubes and considering actual working conditions, customized air heating solutions can be developed for different industrial applications.
With experience in finned tube manufacturing and heat transfer applications, we support customers with technical consultation, customized production and engineering cooperation for industrial air heater projects.
