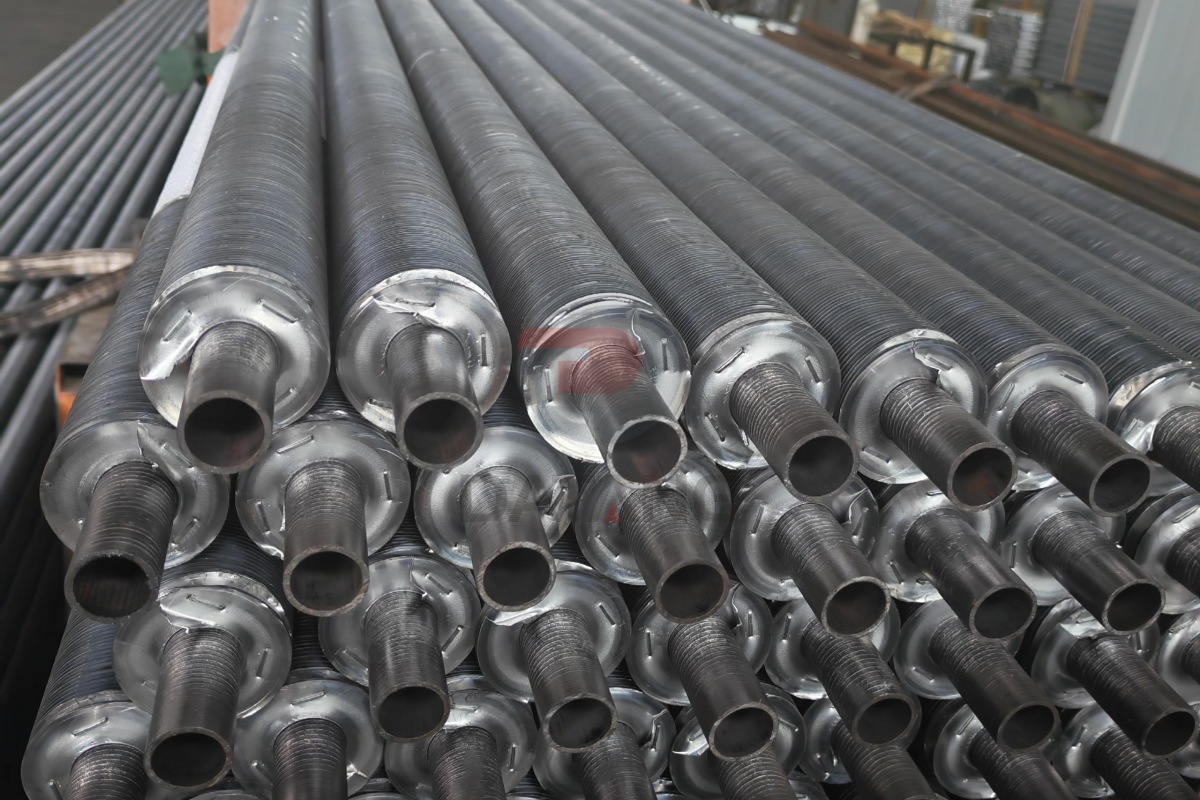

What is an Embedded G Fin Tube?

An Embedded G Fin Tube, commonly referred to as a
G Type Finned Tube, is manufactured by machining a precision
helical groove on the outside surface of the base tube before continuously
embedding an aluminum or copper fin strip into the groove.

After insertion, the surrounding tube material is mechanically rolled back
against the fin, permanently locking the fin in place and creating an excellent
thermal connection between the fin and the tube.

Compared with conventional L Type or LL Type finned tubes, the embedded design
offers significantly stronger fin retention and more stable heat transfer
performance under repeated heating and cooling cycles.

These characteristics make Embedded G Fin Tubes one of the preferred choices
for industrial heat exchangers operating at medium and high temperatures.

Why Engineers Choose Embedded G Fin Tubes

For engineers designing air cooled heat exchangers and industrial heat transfer
equipment, long-term thermal stability is often more important than simply
increasing fin surface area.

The embedded manufacturing method creates a permanent mechanical bond between
the fin and the tube, ensuring reliable heat transfer throughout the operating
life of the equipment.

• Excellent thermal conductivity
• Low contact thermal resistance
• Strong mechanical bonding
• Reliable performance under thermal cycling
• High resistance to fin loosening
• Long service life
• Reduced maintenance costs
• Suitable for continuous industrial operation

Structure of an Embedded G Fin Tube

The performance of an Embedded G Fin Tube is determined by the close mechanical
contact between the fin and the base tube. Unlike wrapped fin designs, the fin
is securely embedded into a precision-machined helical groove, creating a
permanent mechanical bond with excellent thermal conductivity.

This structure minimizes contact thermal resistance while improving mechanical
stability under continuous heating and cooling cycles. The result is reliable
heat transfer performance throughout the service life of the equipment.

Manufacturing Process

Every Embedded G Fin Tube is manufactured through a controlled production
process to ensure consistent fin bonding, dimensional accuracy and thermal
performance.

1. Base Tube InspectionRaw tubes are inspected for dimensional accuracy, straightness and surface quality.
2. Helical Groove MachiningA precision groove is continuously machined along the tube surface using CNC-controlled equipment.
3. Fin Strip FeedingAluminum or copper fin strip is accurately inserted into the machined groove.
4. Mechanical EmbeddingRolling tools permanently lock the fin into the groove, creating excellent thermal contact.
5. Dimensional InspectionFin height, fin pitch, tube diameter and straightness are carefully inspected.
6. Final PackagingFinished products are cleaned, protected and packed for international shipment.

How Embedded G Fin Tubes Improve Heat Transfer

Heat transfer efficiency depends on how effectively thermal energy moves from
the base tube to the fin surface. The embedded manufacturing process minimizes
thermal resistance by maintaining continuous mechanical contact between the fin
and the tube wall.

Compared with wrapped fin tubes, Embedded G Fin Tubes provide more stable heat
transfer during long-term operation because the fin remains firmly secured even
under repeated thermal expansion and contraction.

• Excellent fin-to-tube thermal conductivity
• Reduced contact thermal resistance
• Uniform heat distribution
• Improved heat dissipation
• Reliable operation under thermal cycling
• Lower long-term maintenance costs

Embedded G Fin Tube vs Other Finned Tube Types

Technical Specifications

Every project has different operating requirements. Therefore, all dimensions
can be customized according to customer drawings and heat exchanger design.

Industrial Applications

Embedded G Fin Tubes are designed for applications where reliable heat transfer,
mechanical durability and long-term operating stability are critical. Their
embedded fin construction allows them to perform consistently under elevated
temperatures, vibration and continuous thermal cycling.

Today, G Type Finned Tubes are widely used across various industrial sectors,
particularly in air-cooled heat exchangers and process cooling systems.

Air Cooled Heat Exchangers (ACHE)

Embedded G Fin Tubes are one of the most widely used tube designs for air-cooled
heat exchangers because they provide excellent heat dissipation while maintaining
strong fin-to-tube contact during continuous operation.

• Oil Refineries
• Petrochemical Plants
• Natural Gas Processing
• LNG Facilities
• Chemical Manufacturing

Power Generation

Power plants require highly reliable heat exchange equipment capable of
operating continuously under varying thermal loads.

Embedded G Fin Tubes are commonly used in steam condensers, air preheaters,
heat recovery systems and auxiliary cooling equipment.

Petrochemical Processing

Petrochemical production involves frequent temperature fluctuations and
demanding operating environments.

The embedded fin structure provides reliable mechanical stability, excellent
corrosion resistance, stable thermal performance and reduced maintenance
requirements.

Industrial Heat Recovery

Recovering waste heat is one of the most effective ways to improve overall plant
efficiency.

Embedded G Fin Tubes are widely applied in waste heat recovery units, process gas
cooling, industrial drying systems, thermal oil systems and exhaust gas heat
recovery equipment.

HVAC and Industrial Cooling

For medium and high-temperature cooling applications, Embedded G Fin Tubes
provide an excellent balance between thermal performance, durability and
operating cost.

Typical Industries We Serve

Our Embedded G Fin Tubes have been supplied for customers serving industries
including:

• Oil & Gas
• Petrochemical
• Power Generation
• Chemical Processing
• Fertilizer Plants
• Steel Industry
• Cement Plants
• LNG Terminals
• Marine Engineering
• Industrial Manufacturing

Whether the project requires standard finned tubes or fully customized
dimensions, our engineering team supports customers from design consultation
through final production.

Why Choose Datang Embedded G Fin Tubes?

Selecting the right supplier is just as important as selecting the right finned
tube design.

At Datang, we focus on manufacturing finned tubes that combine reliable heat
transfer performance with consistent production quality.

Manufacturing Advantages

• Precision CNC groove machining
• Stable fin embedding process
• Consistent fin pitch and fin height
• Strict dimensional control
• Multiple material combinations available
• Customized production according to customer drawings
• Flexible production for small and large orders

Quality Control

Every production batch follows a comprehensive inspection process to ensure
dimensional accuracy and product consistency.

• Raw material verification
• Tube dimension inspection
• Fin height inspection
• Fin pitch measurement
• Surface quality inspection
• Straightness inspection
• Packaging inspection

Additional third-party inspection can be arranged upon customer request.

Engineering Support

Our engineering team works closely with customers during every stage of the
project.

We can assist with:

• Material selection
• Tube size recommendation
• Fin geometry optimization
• Heat exchanger matching
• Drawing confirmation
• Manufacturing consultation

This helps customers select the most suitable finned tube configuration for
their operating conditions.

Typical Manufacturing Workflow

1. Customer Inquiry
2. Technical Discussion
3. Drawing Confirmation
4. Material Procurement
5. Production
6. Dimensional Inspection
7. Final Quality Inspection
8. Packing
9. Worldwide Shipment

Project Experience

Customized Embedded G Fin Tubes for Industrial Heat Exchanger Projects

Over the years, we have supplied Embedded G Fin Tubes for customers involved in
air coolers, petrochemical plants, power stations and industrial heat exchanger
manufacturing.

Rather than offering standard products only, we support customized production
based on customer drawings and project specifications.

Our manufacturing capabilities include:

• Customized tube length
• Customized fin pitch
• Various tube materials
• Multiple fin materials
• OEM manufacturing
• Export packaging

Each project is manufactured according to customer requirements to ensure
compatibility with the final equipment.

Why More Engineers Specify Embedded G Fin Tubes

Compared with conventional wrapped fin tubes, the embedded design offers a
better balance between heat transfer efficiency, structural reliability and
long-term operating cost.

For applications operating at elevated temperatures or under continuous thermal
cycling, engineers increasingly prefer Embedded G Fin Tubes because they
provide:

• Stable thermal performance
• Excellent mechanical strength
• Long service life
• Lower maintenance frequency
• Reduced total ownership cost
