Case Study: G-Type Embedded Finned Tubes Supplied for Oil &Gas Air Cooler Project in Iraq

Project Overview

Project Location: Iraq
Industry: Oil & Gas / Process Equipment
Application: Air Cooler
Product: G-Type Embedded Finned Tubes
Service: Product Supply & Technical Support

For an oil and gas process equipment project in Iraq, our team supplied G-type embedded finned tubes and provided technical support for product selection and application requirements.

The project required finned tubes suitable for industrial heat transfer equipment where reliable fin-to-tube contact, mechanical stability, and consistent heat transfer performance are important considerations.

Customer Requirement

For air cooling applications in oil and gas process equipment, the finned tube is a critical heat-transfer component. The tube design must provide sufficient external heat-transfer area while maintaining reliable mechanical contact between the fin and base tube during long-term operation.

The Iraqi customer was looking for a suitable G-type finned tube solution for its air cooler application and required technical assistance in selecting the appropriate tube and fin configuration.

Rather than supplying a standard product without considering the application, we reviewed the customer’s requirements and provided technical support during the selection process.

Engineering Solution: G-Type Embedded Finned Tubes

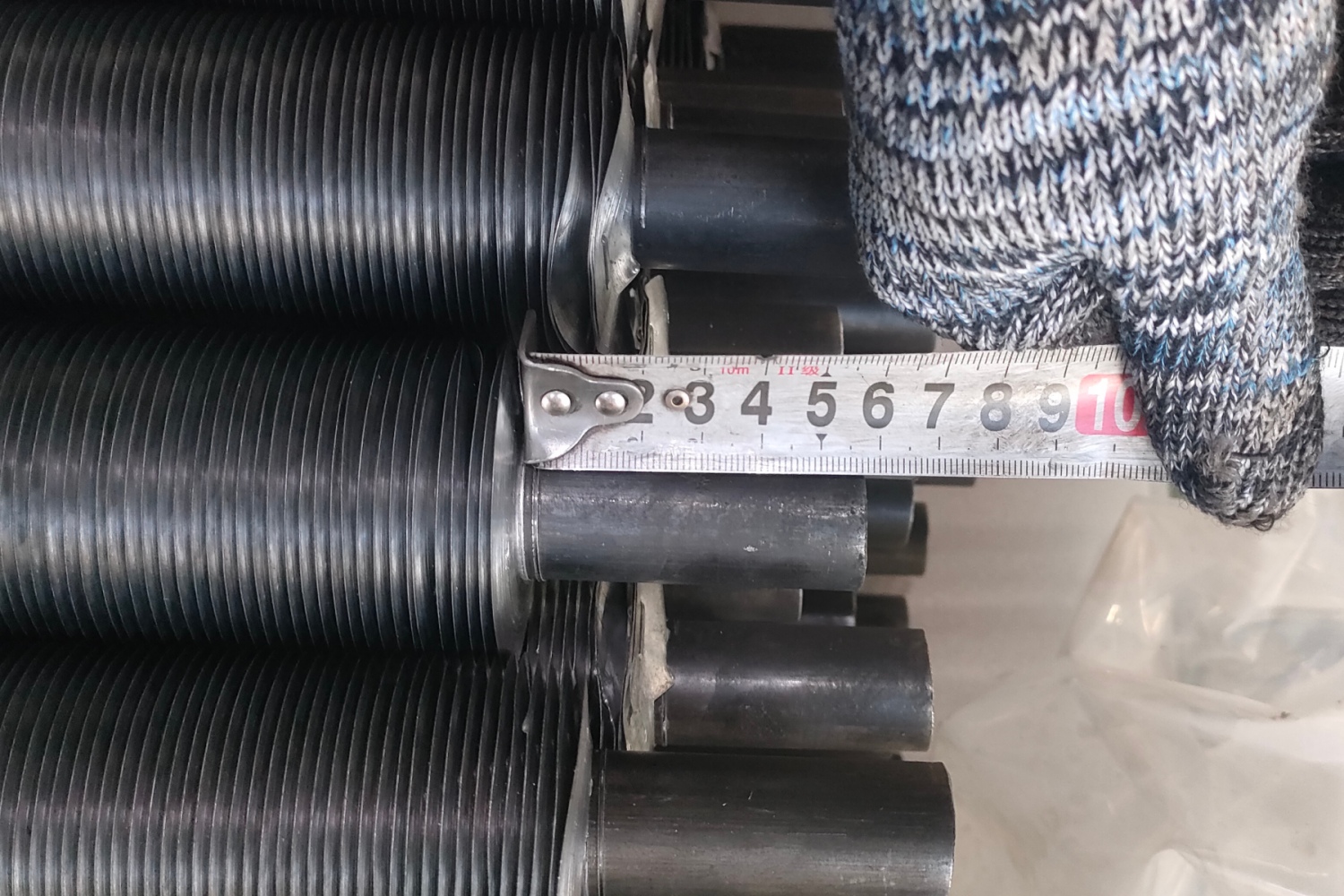

We recommended G-type embedded finned tubes, also known as embedded fin tubes.

Unlike conventional wrap-on fin tubes, a G-fin tube uses a machined helical groove on the outside surface of the base tube. The fin strip is wound into the groove and mechanically secured by closing the groove around the fin.

This construction creates a strong mechanical connection between the fin and tube, helping maintain close thermal contact during operation. Embedded G-fin tubes are commonly considered for industrial heat exchangers, air coolers, and demanding process applications.

For this project, the G-type configuration provided a practical balance between:

• Enhanced heat-transfer surface area
• Secure fin attachment
• Mechanical stability
• Suitability for industrial process equipment
• Application-specific customization

Why G-Type Finned Tubes for Oil & Gas Equipment?

Oil and gas process equipment can operate under demanding thermal and mechanical conditions. Therefore, fin attachment is not simply a manufacturing detail—it can directly affect long-term heat-transfer performance and equipment reliability.

The embedded structure of a G-fin tube mechanically locks the fin into a groove in the tube wall. This gives the fin a more secure attachment than simple tension-wound configurations and helps maintain thermal contact during temperature changes.

For air cooler applications, the increased external surface area of the fins allows more heat-transfer area to be provided within a compact equipment footprint.

This makes G-type embedded finned tubes a suitable option for many industrial heat-transfer systems, including air coolers and oil & gas process equipment.

Technical Specifications

The final finned tube configuration was selected according to the customer’s project requirements.

Note: The tube dimensions, fin material, fin pitch, and other specifications were selected according to the customer’s equipment and project requirements.

Product Supply and Technical Support

Our involvement in this project was not limited to manufacturing and supplying the tubes.

We also supported the customer during the product selection stage, helping determine a suitable G-type finned tube configuration for the intended air cooler application.

This approach is particularly important for industrial heat-transfer components because parameters such as base tube material, fin material, fin pitch, fin height, tube dimensions, operating temperature, and equipment design can affect the final performance of the heat-transfer system.

By combining product manufacturing with application-oriented technical support, we help customers select finned tubes based on the actual operating requirements rather than using a one-size-fits-all configuration.

Project Result

The G-type embedded finned tubes were supplied for the customer’s oil and gas air cooler application in Iraq, together with technical support during product selection.

The project demonstrates our ability to provide application-specific finned tube solutions for industrial process equipment, particularly where reliable fin attachment and effective heat-transfer surface area are important to equipment design.

More importantly, the project adds another practical reference for our G-type embedded finned tubes in the oil and gas and process equipment sector.

What Are G-Type Embedded Finned Tubes?

G-type finned tubes, also called embedded finned tubes, are manufactured by machining a helical groove into the outer surface of the base tube and mechanically embedding a fin strip into the groove.

The groove is then closed around the fin to create a secure mechanical connection.

Depending on the application, the base tube and fin can be manufactured from different materials, including steel, stainless steel, aluminum, or copper combinations.

Where Are G-Type Finned Tubes Used?

G-type embedded finned tubes can be used in a range of industrial heat-transfer applications, including:

• Air-cooled heat exchangers
• Oil and gas process equipment
• Industrial heat exchangers
• Process cooling systems
• Waste heat recovery equipment
• Industrial heating and cooling systems

The actual fin type should be selected according to operating temperature, thermal duty, fluid conditions, corrosion requirements, equipment geometry, and other project parameters.

Looking for G-Type Finned Tubes for Your Project?

If you are designing an air cooler, heat exchanger, or oil and gas process equipment, we can help you select a suitable G-type embedded finned tube configuration based on your project requirements.

Send us your tube dimensions, fin specifications, drawings, operating conditions, or equipment requirements. Our technical team can review the application and recommend a suitable finned tube solution.

Contact us for G-type finned tube selection and technical support.
