H Type Finned Tube Rectangular Finned Tubes

H Type Finned Tube Rectangular Finned Tubes Featured Image
  • H Type Finned Tube Rectangular Finned Tubes

Short Description:

H-economizer flash resistance welding processes used, the welding seam after the high rate of fusion, weld tensile strength, and has good thermal conductivity. H-economizer can also manufacture dual tube “double H” type fin tubes, its rigid structure, and can be applied to a longer tube row occasion.


Product Detail

Product Tags

Product Introduction

● H type finned tube specifications

● Tube OD: 25-73mm

● Tube Thk:  3.0-6.0mm

● Fin Thk: 1.5-4.0mm

● Fin Pitch: 9.0-30.0mm

● Fin Height: 15.0-45.0mm

Product Applications

H finned tubes are widely used in utility boilers, industrial boilers, Marine power, tail of heat exchangers, economizers or waste incinerators for coal and oil installations etc.

H-economizer two rectangular fin, similar to a square, its edge length for the fluorescent tubes of 2-fold, an expansion of the heating surface.

Max. Working Temperature: 300 °C

Atmospheric Corrorsion Resisitance: OK

Mechanical Resistance: Good

Fin Material: Copper, Aluminum, carbon steel, stainless steel

Base Tube materials: Any material available, such as Carbon steel Tube, A179, A192, A210, stainless tube A269/A213 T5 T11 T22 304 316

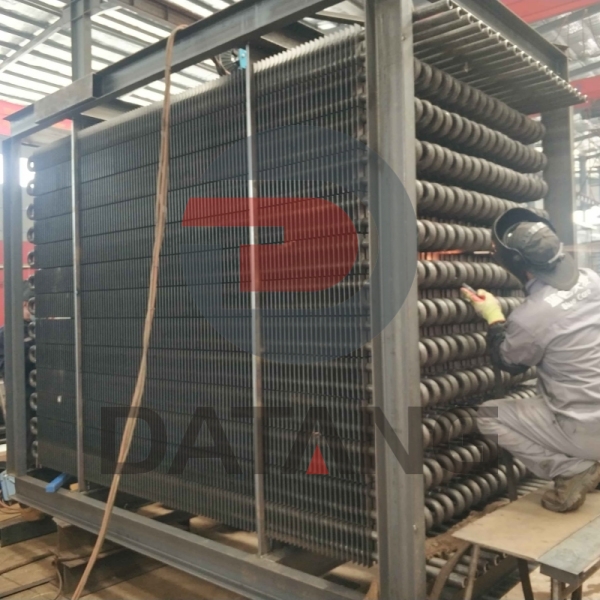

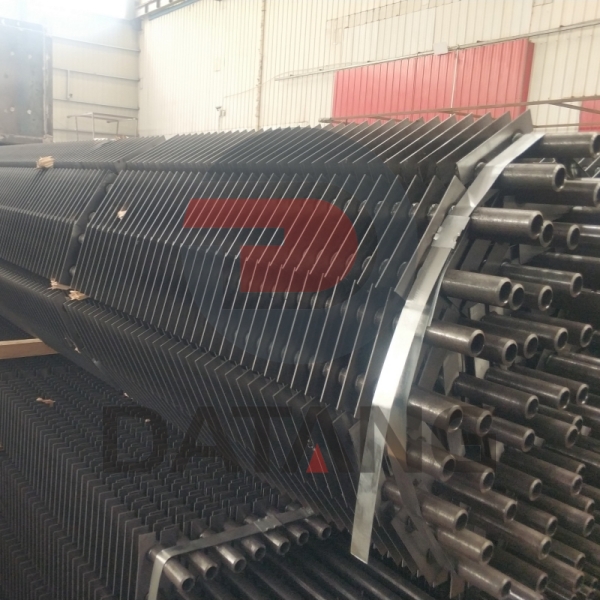

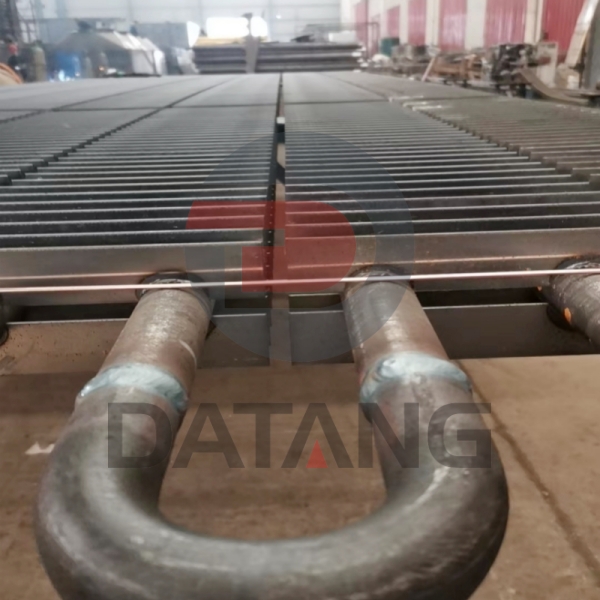

Product Display

High_Frequency_Welding_Finned_Tube
2020082677175153

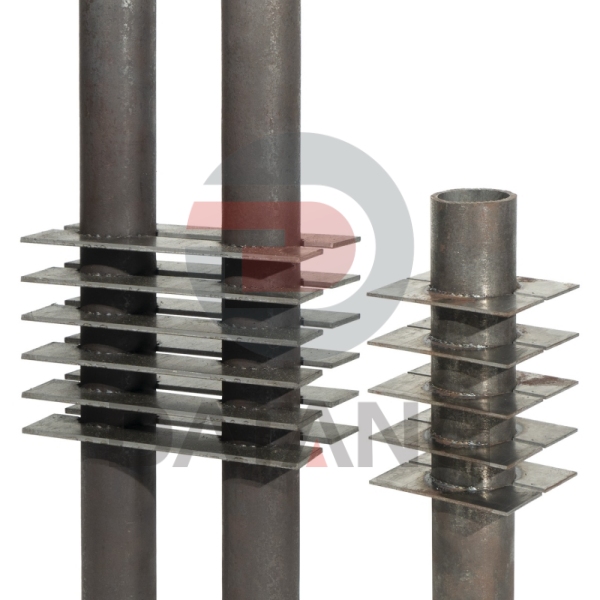

Rectangular Finned Tubes

Single pipe square finned tubes and twin pipe rectangular finned tubes are also manufactured as per customers’ requirements. These are particularly suitable for dust laden exhaust gases, e.g. for economizers in coal and oil fired units or waste incinerators.
