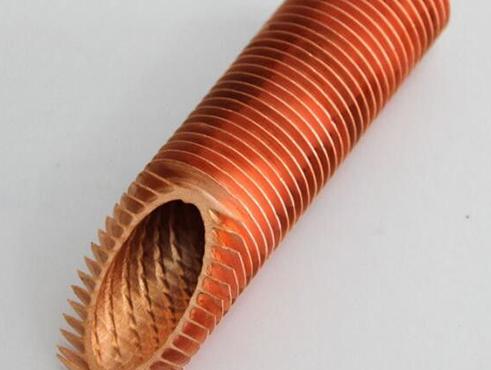

INNER GROOVED LOW FINNED TUBES​ FOR HEAT EXCHANGER

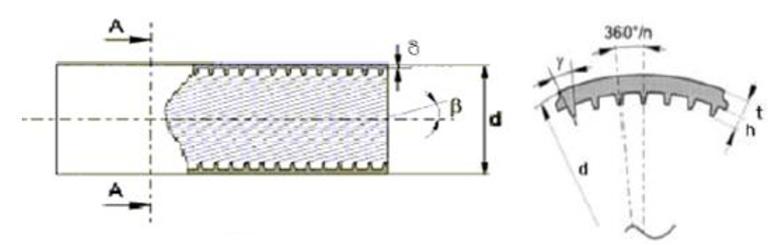

Inner Grooved Low Finned Tubes also known as steam finned tubes, inner finned tubes, low Inner Grooved Low Finned Tubes​are ordinary heat exchange tubes that are rolled to form threads on their inner surface, and the fins are removed from the bare tube by rolling rolls The outer wall rolls out. A high-efficiency heat exchange tube type with tubes and fins in the same tube.

Inner Grooved Low Finned Tubes are usually made of copper and are always made with vertical rods for easier installation.

The strengthening effect of this Inner Grooved Low Finned Tubes is outside the tube. The strengthening effect on the medium is reflected in the fact that the threaded fins increase the heat exchange area on the one hand; on the other hand, when the shell-side medium flows through the surface of the threaded pipe, the surface threaded fins have a dividing effect on the laminar flow edge layer and thin the boundary. layer thickness. Moreover, the turbulence formed on the surface is also stronger than that of the light pipe, which further reduces the thickness of the boundary layer. As a result of the combined effect, the tube type has a high heat transfer capacity. When this tube type is used for evaporation, it can increase the number of bubbles formed on the unit surface and improve the boiling heat transfer capacity; when it is used for condensation, the threaded fins are very conducive to the dripping of the condensate at the lower end of the tube, reducing the liquid film. Thin, thermal resistance is reduced, and condensation heat transfer efficiency is improved.
