What are Bent Finned Tubes?

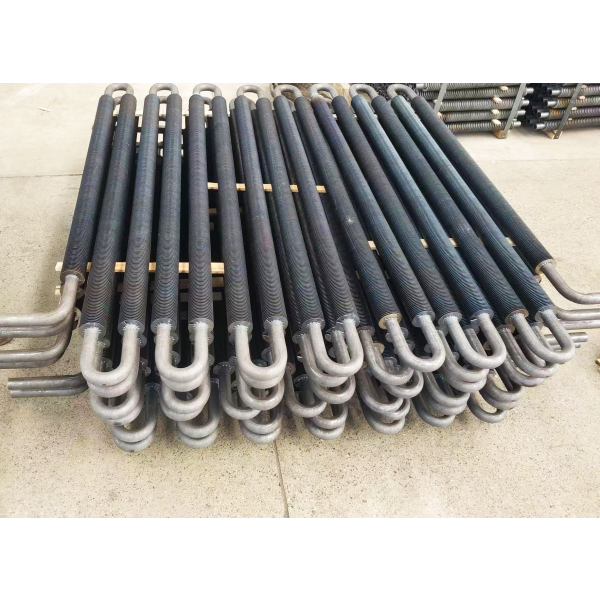

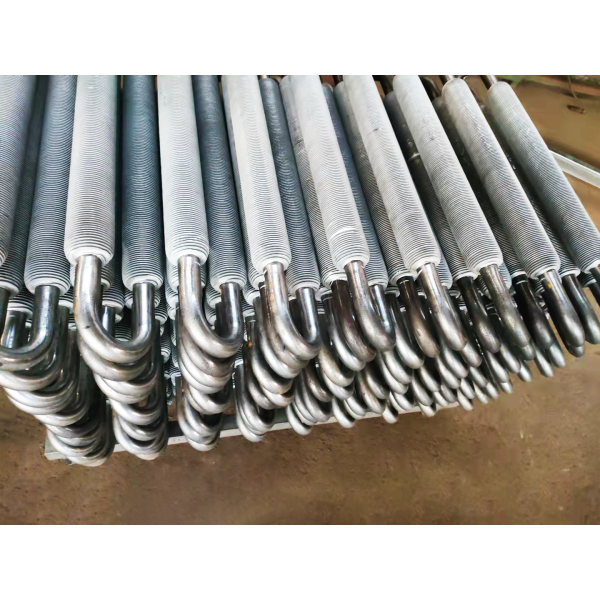

A bent finned tube is essentially a finned tube that has been precisely formed into a specific curvature – U-bends, coils, serpentine shapes, or custom angles – after the fins are attached. The fins, typically helical (spirally wound) or longitudinal, are securely bonded (often welded) to the base tube. The bending process requires specialized expertise to maintain the integrity of both the tube and the fin attachment without compromising performance.
Key Advantages of Bent Finned Tubes:
Enhanced Heat Transfer Efficiency: The fins dramatically increase the effective heat transfer surface area, potentially boosting efficiency by 30-40% compared to bare tubes. The bends allow this enhanced surface to be packed efficiently into the available space.
Space Optimization & Compact Design: The primary advantage. Bent tubes navigate around obstacles, fit into irregular enclosures, or create compact coil arrangements (like in air handler units) that straight tubes simply cannot achieve. This leads to smaller, lighter, and more efficient overall equipment.
Improved Flow Dynamics: Strategically placed bends can influence fluid flow patterns within a heat exchanger, potentially improving distribution, reducing dead zones, or enhancing mixing for better thermal performance.
Reduced Pressure Drop (Potential): In some configurations, a well-designed bent finned tube coil can offer lower air-side pressure drop compared to a bank of straight finned tubes achieving the same heat transfer, leading to energy savings for fans or blowers.
Design Flexibility & Customization: Bent tubes offer engineers immense freedom to tailor the heat exchanger’s geometry precisely to the mechanical and thermal requirements of the application.
Structural Rigidity: Certain bend configurations can add inherent structural strength to the coil assembly.
Critical Application Scenarios:
Bent finned tubes are indispensable where space is at a premium or layouts are complex:
HVAC&R Systems: The backbone of Air Handling Unit (AHU) coils, fan coil units, and condenser coils, where compact, efficient coils with multiple bends (serpentine, U-bends) are essential.
Industrial Process Heaters & Coolers: Used in ovens, dryers, and process gas heaters/coolers requiring specific shapes to fit machinery or ductwork.
Power Generation: Economizers, air pre-heaters, and other heat recovery systems within boilers and power plants often utilize bent configurations to fit complex boiler island layouts.
Heat Recovery Steam Generators (HRSGs): Compact coil arrangements in exhaust gas paths.
Renewable Energy: Solar thermal systems, biomass boilers.
Specialized Industrial Equipment: Drying ovens, chemical processing units, food processing machinery – anywhere custom heat exchange shapes are needed.
Unique Advantages of High-Low Bent Fin Tubes:
Enhanced turbulence effect, significantly improving convective heat transfer coefficient (by 10%-30%);
Reduced fouling and clogging;
Optimized pressure drop and energy consumption;
Lightweight design, cost efficiency, and extended lifespan.
Superior Space Adaptability: Customizable high-low fin distribution allows adaptation to complex installation spaces (e.g., pipe bends, equipment corners), reducing heat exchanger footprint.
[Datang Steel Pipe]: Your Expert Partner in Bent Finned Tube Solutions
For 18 years, [Your Company Name] has been a leading force in designing, manufacturing, and exporting precision-engineered bent finned tubes. We understand that off-the-shelf solutions rarely suffice for complex thermal challenges. That’s why we specialize in customization.
Why Partner with Us?
18 Years of Proven Expertise: Nearly two decades dedicated to mastering the intricacies of finned tube manufacturing and precision bending. We’ve solved countless thermal challenges globally.
Deep Technical Knowledge: Our engineering team possesses extensive knowledge in heat transfer, materials science, and mechanical design. We collaborate closely with you to optimize tube material (carbon steel, stainless steels, alloys), fin type (L-Foot, G-Foot, Embedded), fin density, height, thickness, pitch, and the exact bend geometry for your specific performance requirements (temperature, pressure, corrosion resistance, fluids).
Advanced Manufacturing Capabilities: We operate state-of-the-art facilities equipped with:

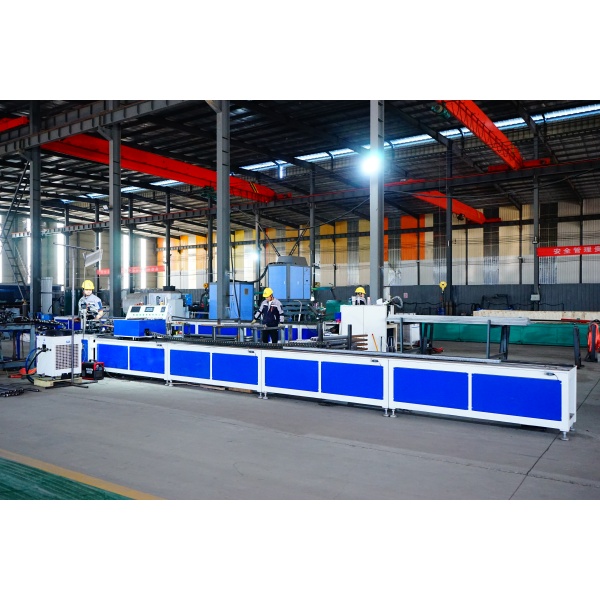

High-frequency welding (HFW) or resistance welding for superior fin-to-tube bonds.

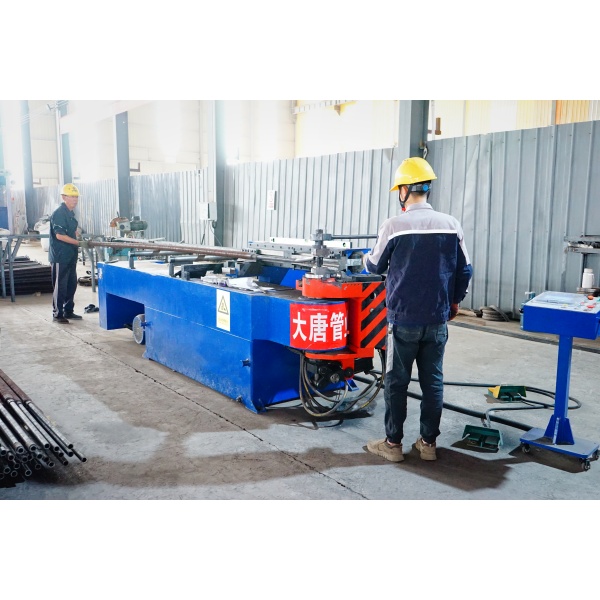

CNC-controlled tube bending machines capable of precise, repeatable complex bends while protecting fin integrity.
Comprehensive in-house tooling for various fin profiles and tube diameters.
Rigorous quality control systems (dimensional checks, pressure testing, weld inspections).
True Customization: We don’t just bend standard tubes. We engineer the entire component from the ground up based on your drawings, samples, or performance specifications. Prototyping and sample services available.
Global Export Experience: A proven track record of reliably delivering high-quality bent finned tubes to customers worldwide. We understand international logistics and compliance requirements.
Commitment to Quality & Reliability: From raw material sourcing to final inspection, quality is embedded in every step. Our products are built for durability and long-term performance in demanding environments.
End-to-End Project Management: We manage your project seamlessly, from initial consultation and design validation through production, testing, and timely delivery.
Unlock Optimal Thermal Performance
Bent finned tubes are the intelligent choice when efficiency meets spatial constraints. Leverage Datang’s 18 years of specialized manufacturing and global export experience to source custom bent finned tube solutions that perfectly fit your application, enhance heat transfer, and deliver lasting value.
Contact us today to discuss your specific bent finned tube requirements and experience the difference true expertise makes.
